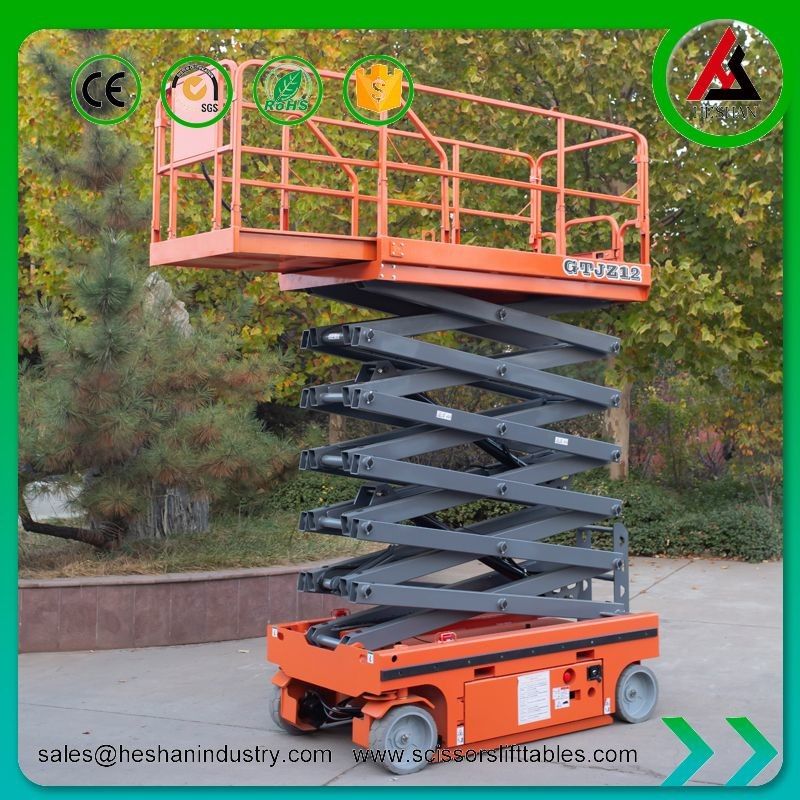

300kg Industrial Self Propelled Driving Electric Scissor Man Lift
The lifts are equipped with safety features such as guardrails, emergency stop buttons, and automatic leveling, ensuring the safety of the operator while working at height. They are also easy to set up and use, with intuitive controls that allow the operator to move the lift up and down smoothly and precisely.
Overall, Single Person Scissor Lifts are a practical and efficient solution for accessing elevated work areas safely and efficiently, reducing the need for ladders or scaffolding, and improving work productivity and safety.
Basic Parameter:
| Model No. |
GTJZ06 |
GTJZ08 |
GTJZ10 |
GTJZ12 |
GTJZ14 |
| Working Height(mm) |
8000 |
10000 |
12000 |
14000 |
15800 |
| Lifting Height (mm) |
6000 |
8000 |
10000 |
12000 |
13800 |
| Lifting capacity |
300 |
300 |
300 |
300 |
227 |
| Max height-guardrail unfold (mm) |
2150 |
2275 |
2400 |
2525 |
2590 |
| Max height-guardrail folded (mm) |
1190 |
1315 |
1440 |
1565 |
2050 |
| Overall Length (mm) |
2400 |
2640 |
| Overall Width (mm) |
1150 |
1130 |
| Platform Size (mm) |
2270×1150 |
2840x1390 |
| Platform extend size (mm) |
900 |
| Min ground clearance (mm) |
110/20 |
| Wheelbase (mm) |
1850 |
| Min turn radius-inner wheel (mm) |
0 |
| Min turn radius-outer wheel (mm) |
2100 |
2700 |
| Power source (v/kw) |
24/3.0 |
24/4.5 |
| Running speed-folding (km/h) |
4 |
| Running speed-rising (km/h) |
0.8 |
| Rising/falling speed (sec) |
40/50 |
70/80 |
| Battery (V/AH) |
4×12/135 |
4x12/150 |
| Charger (V/A) |
24/25 |
24v/30 |
| Max climbing ability (%) |
20 |
| Max working allowable angle |
2-3° |
| Way of control |
Electro-hydraulic proportion control |
| Driver |
Double front-wheel |
| Hydraulic drive |
Double rear-wheel |
| Wheel size-stuffed&no mark |
Φ381×127 |
| Whole weight (kg) |
1900 |
2080 |
2490 |
2760 |
3320 |
The Details Mobile scissor lift:
Configuration:
- Folding guardrails
- Multi-function control handle
- Anti-skidding platform
- Extendable platform
- Automatic lock gate
- High strength scissors
- Durable hydraulic cylinder
- Stable hydraulic pump station
- Hydraulic drive motor
- Non-marking PU driving wheels
- Pot hole automatic protection system
- Automatic brakes system
- Emergency stop button
- Emergent descent valve
- Automatic diagnostic indicator
- Tilt sensor alarm
- Siren
- Safety brackets
- Forklift hole
- Intelligent battery charger
- High capacity battery
Features & Advantages:
- Controlled by imported intelligent technology.
- Powered by DC, can be controlled manually or automatically with adjustable speed.
- Excellent climbing ability.
- Recharge restriction for platform rising.
- Automatic braking function for driving motor.
- Emergent drop locked.
- Automatic malfunction diagnosis for convenient maintenance.
Safety Precautions:
- Explosion-proof valves to protect hydraulic pipe and prevent pipe rupture.
- Spillover valve to prevent high pressure during upward movement and adjust pressure.
- Emergency decline valve for emergency descent or power off.
- Anti-dropping device to prevent platform falling.
Keeping our Electric Scissor Man Lift in excellent condition is effortless thanks to its intuitive maintenance features. The lift is designed with easy access to key components, facilitating routine inspections, servicing, and repairs. Maintenance tasks such as battery checks and lubrication can be performed quickly and efficiently, minimizing downtime and ensuring the lift's optimal performance. Simplify your maintenance processes and keep your lift operating at its best with our Electric Scissor Man Lift.
Our Electric Scissor Man Lift complies with the highest safety standards and regulations, providing operators with peace of mind. It undergoes rigorous testing and inspections to ensure its adherence to industry safety guidelines. With features such as emergency stop buttons, safety interlocks, and safety descent systems, the lift offers reliable protection for operators and workers. Trust in our Electric Scissor Man Lift to provide a secure and compliant working environment.
